Build your own confectionery machines with Sahith

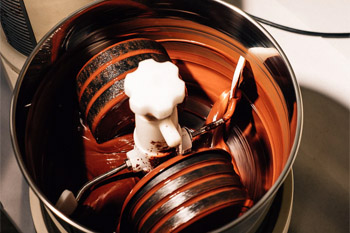

Maintain High Quality
Sahith Melanger
Modern compact mills with stone grinders for manufacturing chocolate.
Certified for all the USA, Europe and Australia requirment.
5 to 100 Kg CapacityMaking Process
The process of making chocolate in a melangeur
1. Put all the ingredients in a melangeur consistently
Ingredients are dipped from fattest to most solid. Cocoa butter with ground cocoa or cocoa nibs first (in case of bean-to-bar). Sugar is added last.
2. Grinding and mixing
Since chocolate is a vegetable fat-based product, ingredients won’t dissolve. In order to achieve smooth-n-silkу texture, a melangeur needs to work from 48 hours nonstop to properly grind dry substances and mix them with fats.
3. Unloading
Upon reaching the desired consistency, the chocolate is unloaded for further manufacture or storage. Melangeurs with a capacity of 20 kg or more are equipped with a automatic tilting gear for the bowl , allowing to unload a large bulk. We recommend using a vibrating sieve during unloading and cleaning to filter the chocolate out of the unmilled pieces, providing purity and safety of the final product.

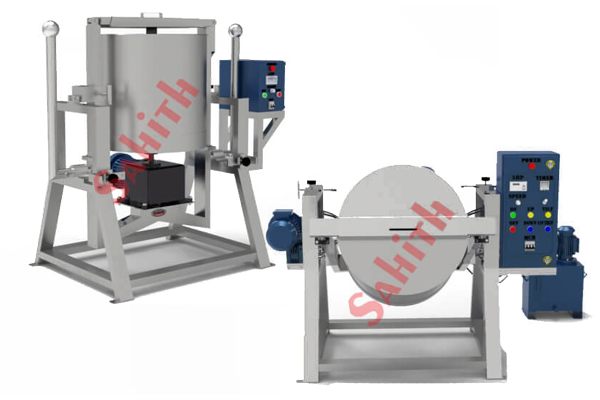

Not Only Chocolate
Melanger is a unique piece of technology for getting homogeneous mass from solid ingredients.
Due to stone grinders and mixing scrapers, melangeur replaces three pieces of equipment of a large factory – pregrinding the ingredients, fine grinding and conching.
Rather than making chocolate from cocoa, melangers are used to make other things:
- Bean to bar
- Nuts spread
- Chocolate spread

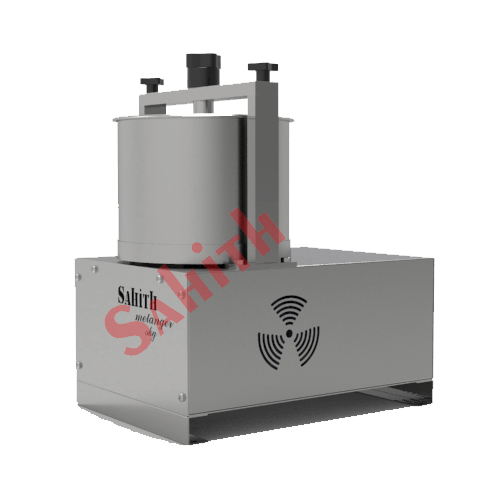

Melanger - 5Kg
Product Information
- Dimensional size:25 х 18 х 27 inches
- Weight:60 kg
- Loading capacity:5 kg
- Supply:230/415 V~
50/60 Hz - Power:0.37 kW/h
- Housing material:Stainless steel
- Rotation speed:0 - 140 rpm
- Speed adjustment:Yes
- PackageMelangeur 5 kg; Warranty certificate.

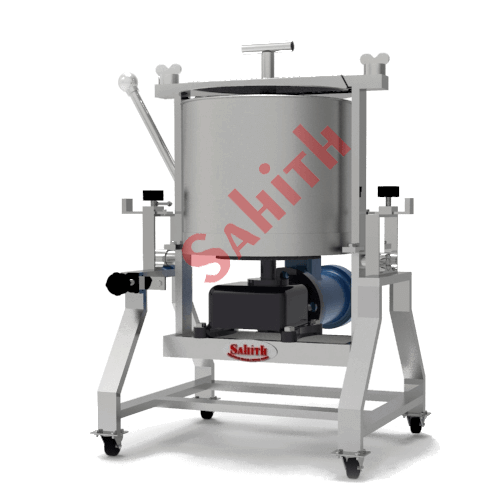

Melanger - 10Kg
Product Information
- Dimensional size:29 х 23 х 36 inches
- Weight:100 kg
- Loading capacity:10 kg
- Supply:230/415 V~
50/60 Hz - Power:0.37 kW/h
- Housing material:Stainless steel
- Rotation speed:0 - 140 rpm
- Speed adjustment:Yes
- PackageMelangeur 10 kg; Warranty certificate.

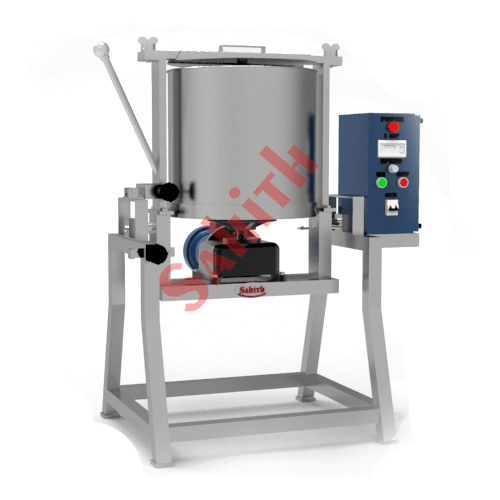

Melanger - 20Kg
Product Information
- Dimensional size:39 х 30 х 49 inches
- Weight:180 kg
- Loading capacity:20 kg
- Supply:230/415 V~
50/60 Hz - Power:0.37 kW/h
- Housing material:Stainless steel
- Rotation speed:0 - 140 rpm
- Speed adjustment:Yes
- PackageMelangeur 20 kg; Warranty certificate.

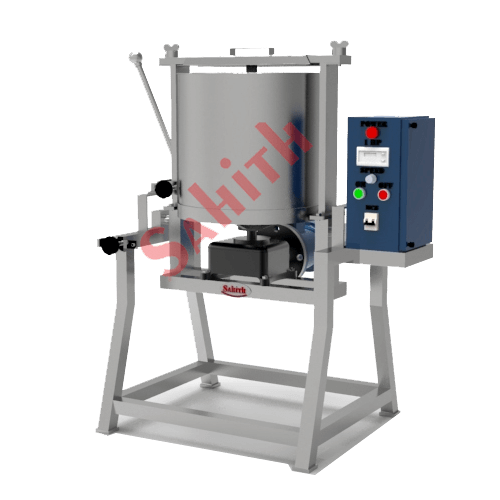

Melanger - 40Kg
Product Information
- Dimensional size:42 х 31 х 52 inches
- Weight:220 kg
- Loading capacity:40 kg
- Supply:230/415 V~
50/60 Hz - Power:0.37 kW/h
- Housing material:Stainless steel
- Rotation speed:0 - 140 rpm
- Speed adjustment:Yes
- PackageMelangeur 40 kg; Warranty certificate.

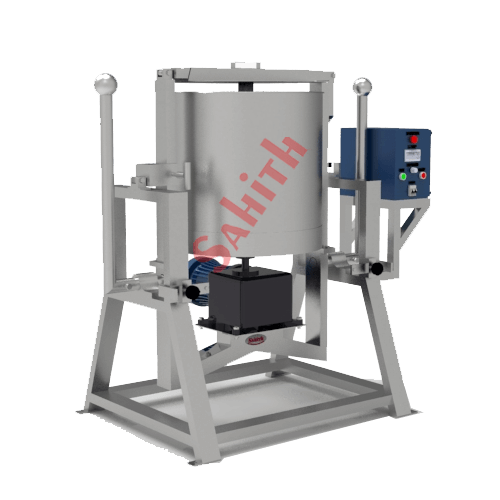

Melanger - 60Kg
Product Information
- Dimensional size:61 х 37 х 62 inches
- Weight:350 kg
- Loading capacity:60 kg
- Supply:230/415 V~
50/60 Hz - Power:0.37 kW/h
- Housing material:Stainless steel
- Rotation speed:0 - 140 rpm
- Speed adjustment:Yes
- PackageMelangeur 60 kg; Warranty certificate.

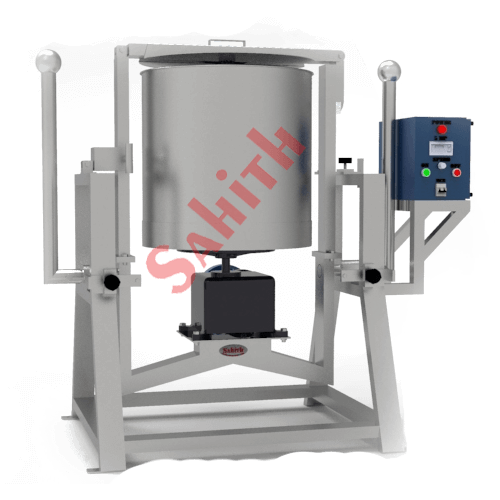

Melanger - 80Kg
Product Information
- Dimensional size:63 х 39 х 64 inches
- Weight:420 kg
- Loading capacity:80 kg
- Supply:230/415 V~
50/60 Hz - Power:0.37 kW/h
- Housing material:Stainless steel
- Rotation speed:0 - 140 rpm
- Speed adjustment:Yes
- PackageMelangeur 80 kg; Warranty certificate.

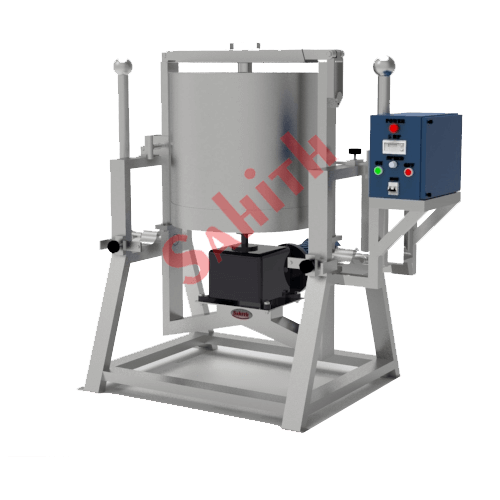

Melanger - 100Kg
Product Information
- Dimensional size:65 х 41 х 66 inches
- Weight:480 kg
- Loading capacity:100 kg
- Supply:230/415 V~
50/60 Hz - Power:0.37 kW/h
- Housing material:Stainless steel
- Rotation speed:0 - 140 rpm
- Speed adjustment:Yes
- PackageMelangeur 100 kg; Warranty certificate.
Product Feature
The features that make our Product unique
Thermoregulation
Will measure product temperature themselves and won’t allow the mass to heat up above the temperature you’ve set. In case of a power outage, they’ll sleep until you allow them to continue working.
Automatic Tilt
Automatic tilt will adjust the angle or position of the grinding surface automatically. While grinders typically require manual adjustments to set the desired grinding angle, some advanced or specialized grinders may incorporate automatic tilt features for enhanced precision and convenience.
Thermal Sensor
You set the maximum allowed temperature of the mass and the melangeur follows the speed in order to not overheat the contents.
Warranty
1 year of warranty with fast post-warranty service. Spare parts and components are always in stock.
